Department of Pathology, Nanjing Drum Tower Hospital (CNAS Accredited)

Pathology Equipment - MacroPath Grossing Station

Specialized Equipment for Pathology Departments Others

To guarantee the overall performance of pathology laboratory systems, FreshAir has continuously developed, innovated and upgraded a full range of pathology equipment and supporting accessories, including the MacroPath Grossing Station, F-ST Purified Staining Bench and F-NSP Ventilated Specimen Cabinet.
An increasing number of pathology departments are benefiting from our innovative products and professional technical services.

菲兰病理取材台

MacroPath
MacroPath Tiger Safety-type Grossing Station
Grossing Station

ntelligent Control: Fully automated system that adjusts purification intensity automatically according to changes in pollutant concentration.
Structural Design: Adopts an innovative ergonomic structure for clear and comfortable vision. It features vertical laminar fresh air that delivers clean airflow directly to the breathing zone, along with three-dimensional dual-side exhaust. Equipped with water-air separation and electric height adjustment functions.

F-ST
Purified Staining Cabinet

Features:Designed for manual staining. Only a 75 mm diameter ventilation duct is required to maintain effective purification, protecting the health of medical and technical staff.
Structural Design: Full stainless steel body with built-in air suction and purification filter unit. It supports real-time air pressure monitoring and filter alarm reminders.
净化染色台
定风量通风柜

F-VEA
Constant Air Volume Fume Hood

Constant Air Volume Control:Connectable to the Forenair system and equipped with F-V200 venturi valve. It automatically adjusts air volume based on the operating status of the fume hood.
Custome Size: All-steel construction. Height: 2350 mm, depth: 850 mm. Width is customizable from 1200 mm to 2400 mm.

F-VEA-L
Constant Air Volume
Walk-in Fume Hood

Constant Air Volume Control:Compatible with the Forenair system and fitted with F-V200 venturi valves. Air volume is adjusted automatically according to the operation status of the fume hood.
Custom Size: Dedicated for tissue processors. All-steel structure. Height: 2350 mm, Depth: 1100 mm. Width customizable within 1500–2400 mm.
走入式通风柜

F-EOT
All-steel Laboratory Bench

Structural Design: Epoxy resin coated surface, acid and alkali resistant, anti-corrosive. The slide rails run smoothly with low noise. Each compartment inside the cabinet is detachable for easy transportation and assembly.

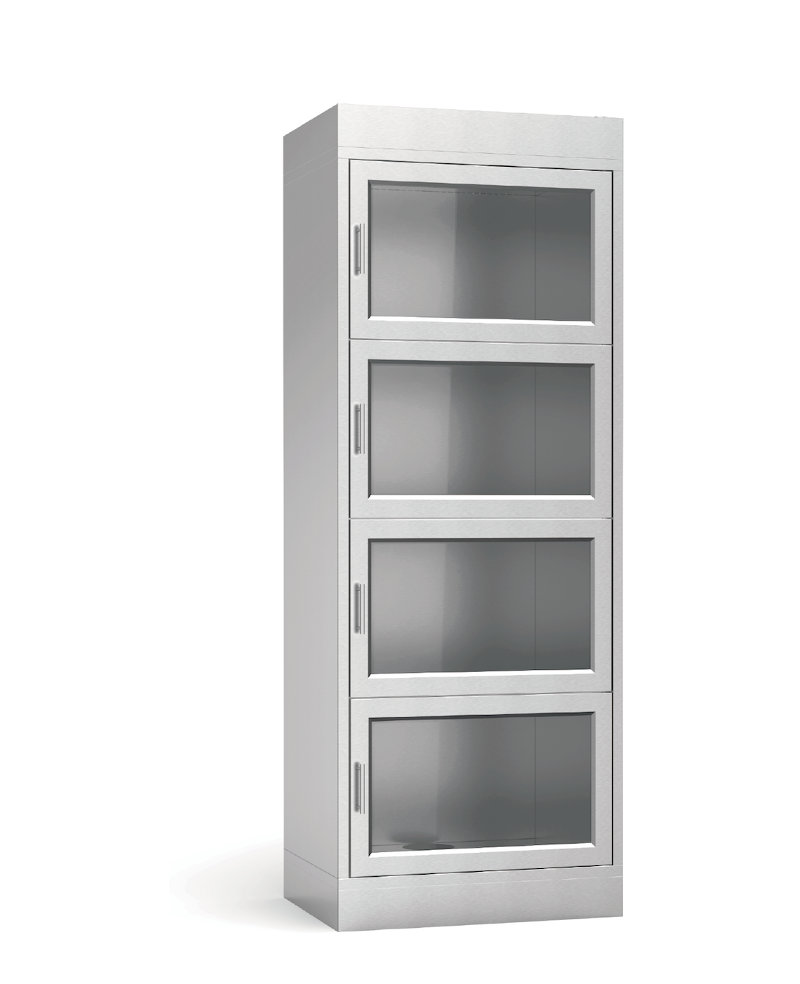

F-NSP
通风标本柜

Ventilated Specimen Cabinet:The cabinet is entirely made of high-quality 1.0~1.5mm SUS316 and SUS304 stainless steel plates. It is fitted with four tiers, each holding 10 dedicated specimen boxes, and reserved with exhaust ports.
Product Features: The specially designed internal exhaust ducts ensure uniform air exhaust across all tiers. Equipped with large viewing windows.
