德国进口取材台系列

取材台

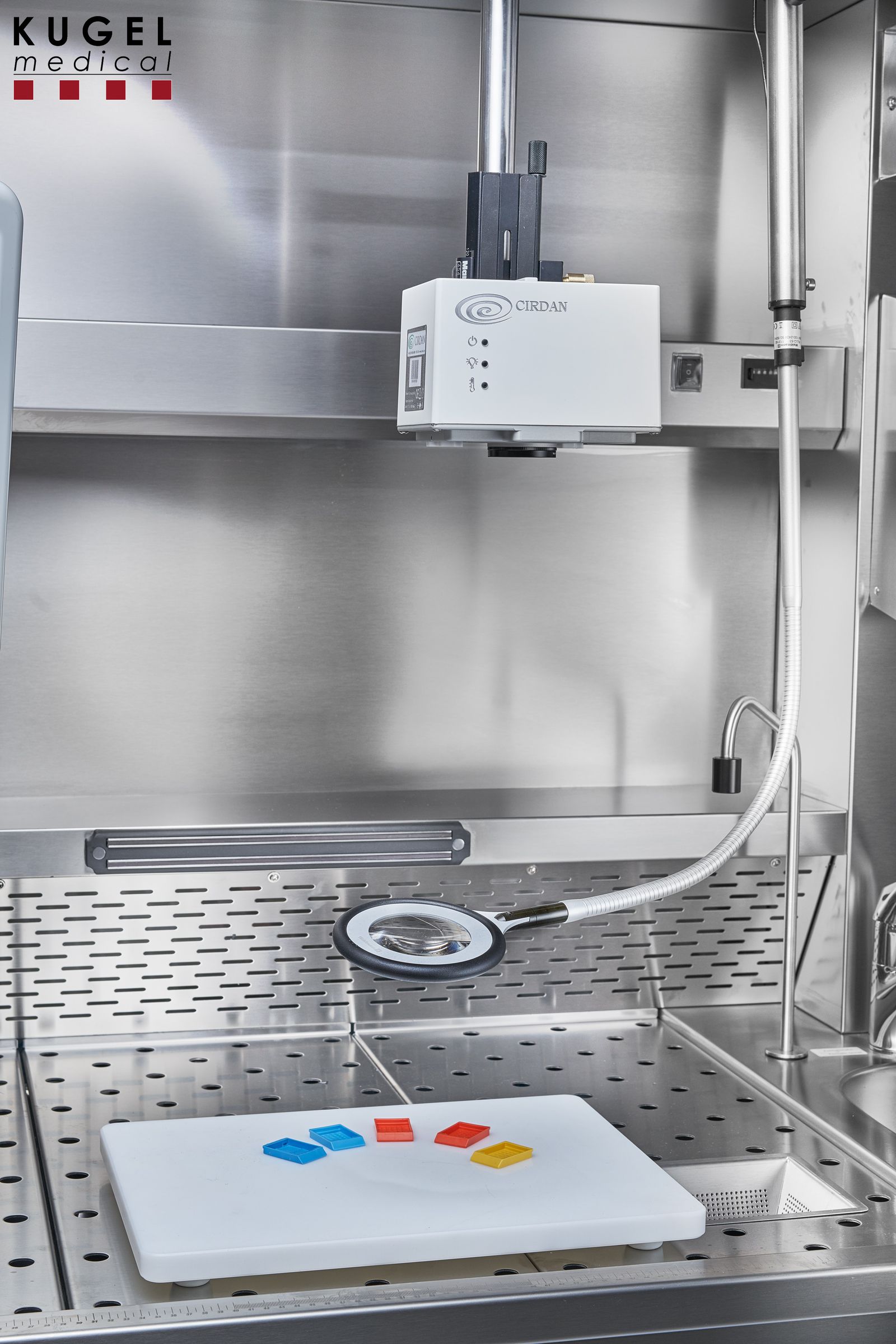

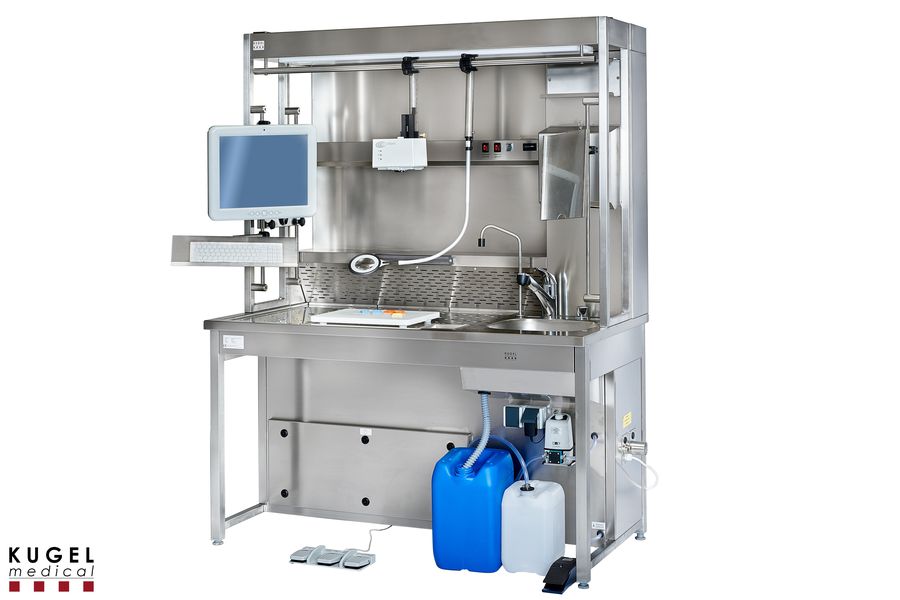

GrossPath GP -1500 - ECO-LINE

取材台

GrossPath GP -1500 - ECO-LINE
  • Entire construction is made of stainless steel (material no. 1.4301 - ANSI 304)

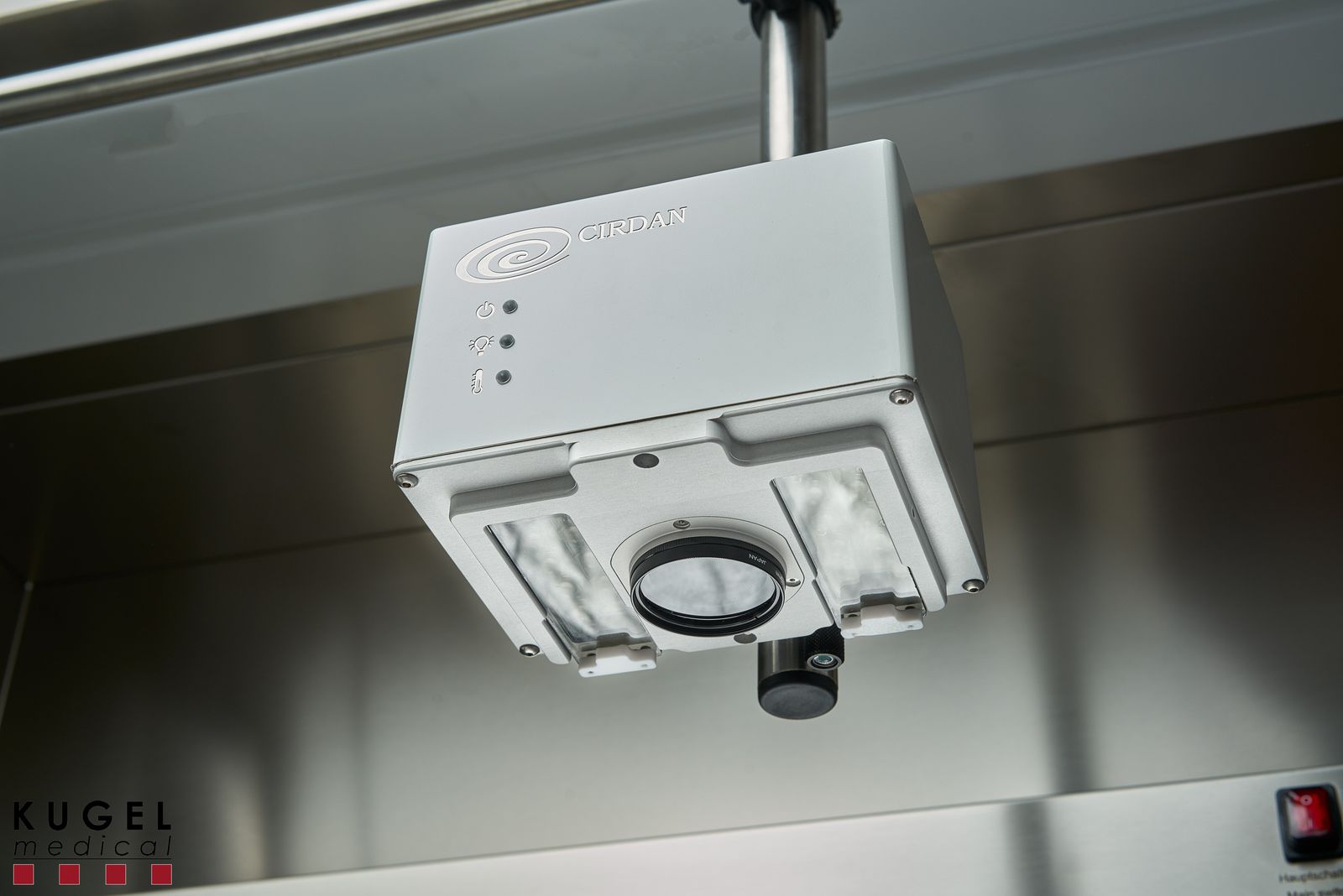

  • Fixed illumination with "daylight" quality approximately 5,000° K
  • Railing system for attaching holding devices such as camera holders, magnifier lamp holders etc.
  • Inclusive two shockproof sockets 230 Volt (mounted on top of the illumnation System)
  • Sturdy self-supporting subconstruction adjustable feet
  • Work surface includes a seamlessly welded basin measuring 370 x 150 mm
  • Mixing tap with extendable hand shower
  • Very sturdy, perforated insertable working plates (approximately 10 mm lower), drilling D17, T60
  • Air speed on the perforated surface: min. 0,4 m/sec
  • Integrated exhaust van
  • Integrated sprinkler system with adjustable valve for bath sanitation located underneath the perforated working plates
  • Formalin sink with sieve insert
  • Connection for waste water as well as hot and cold water
  • Optionally height-adjustable from 850 to 1100 mm by means of an integrated electric drive
取材台

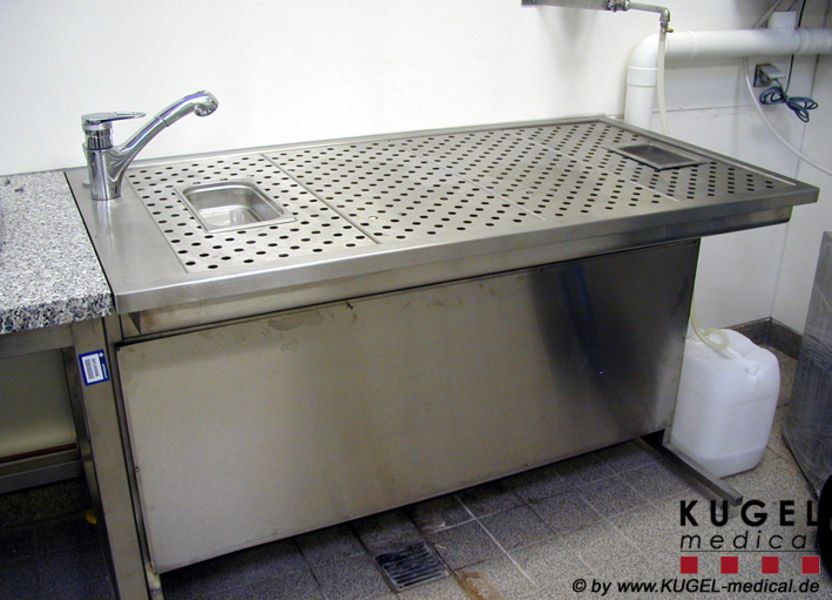

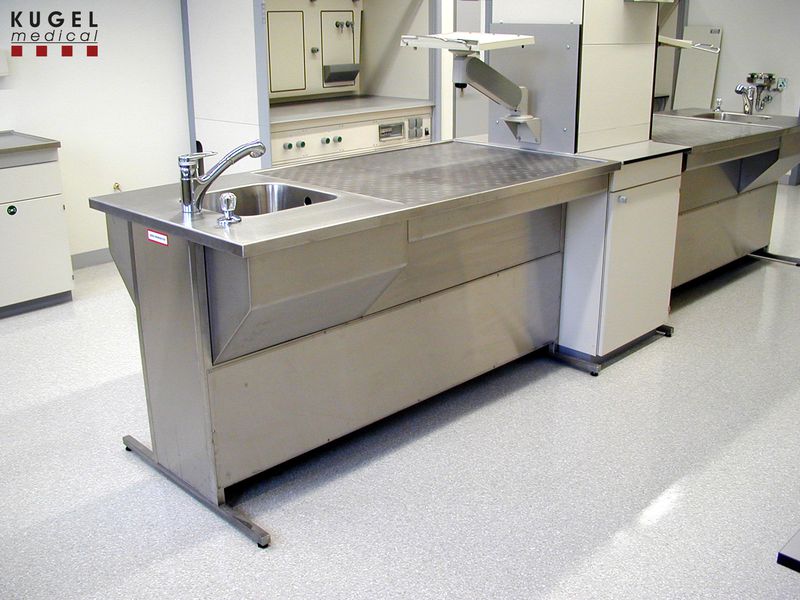

Down-Draft Grossing Table Dual Working Place UCS-1500-D

取材台

Down-Draft Grossing Table Dual Working Place UCS-1500-D

The UCS models include the following features:

  • Dual working place
  • Workstations with a large surface area
  • Entire construction is made of stainless steel
  • Stable, self-supporting undercarriage with adjustable legs
  • Low overall height of the upper structure increases leg room
  • Work surface includes a seamlessly welded basin measuring 400 x 400 x 200 mm
  • Basin includes integrated air vacuum
  • Basin can be mounted to the right or left side
  • Very sturdy, perforated and insertable working plates
  • Integrated sprinkler system with adjustable valve for bath sanitation located underneath the perforated working plates
  • Formalin sink with sieve insert
  • Mixing tap with detachable cold and hot water shower´
  • Exhaust duct left or right side
取材台

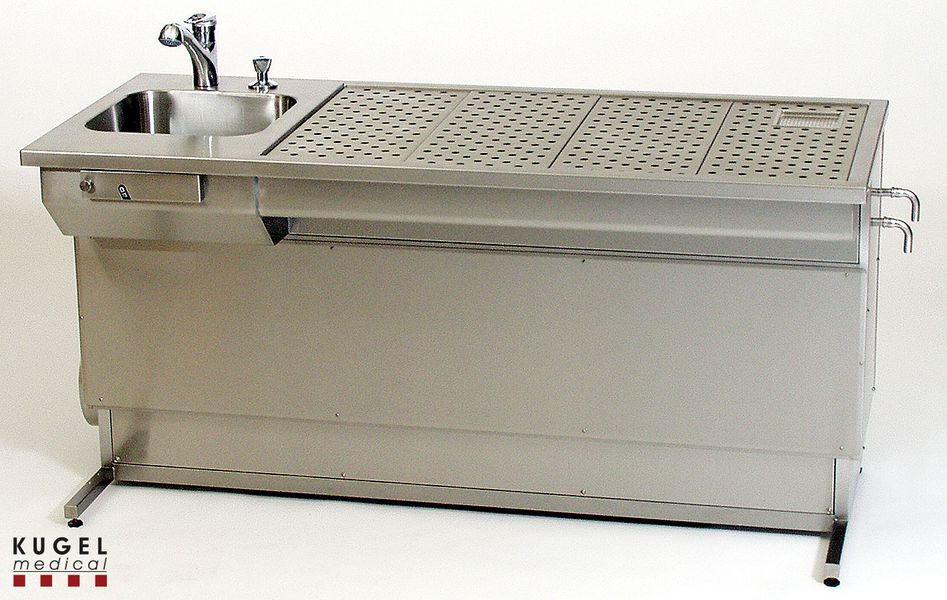

Down-Draft Grossing Table Electrically Height-Adjustable UCS-E-1500

取材台

Down-Draft Grossing Table Electrically Height-Adjustable UCS-E-1500

The UCS-E-1500 model includes the following features:

  • Workstations with a large surface area
  • Entire construction is made of stainless steel
  • Height-adjustable from 750 to 1000 mm
  • Stable, self-supporting undercarriage with adjustable legs
  • Low overall height of the upper structure increases leg room
  • Work surface includes a seamlessly welded basin measuring 400 x 400 x 200 mm
  • Basin includes integrated air vacuum
  • Basin can be mounted to the right or left side
  • Very sturdy, perforated and insertable working plates
  • Integrated sprinkler system with adjustable valve for bath sanitation located underneath the perforated working plates
  • Formalin sink with sieve insert
  • Mixing tap with detachable cold and hot water shower
  • Exhaust duct left or right side
取材台

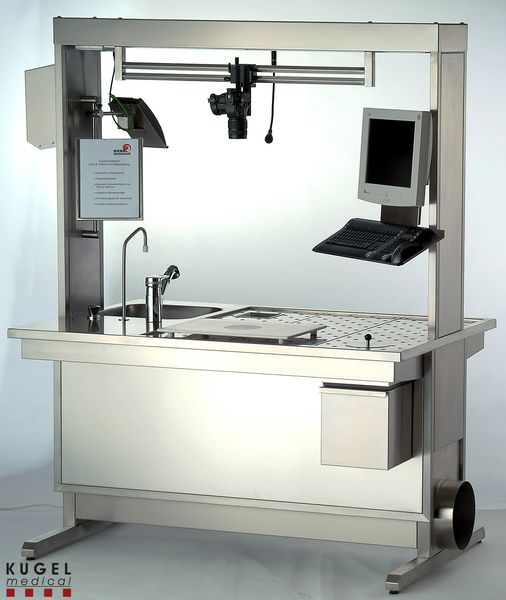

Down-Draft Grossing Table UCS-E-1500-D-BEA - Electrically Height-Adjustable with Illumination

取材台

Down-Draft Grossing Table UCS-E-1500-D-BEA - Electrically Height-Adjustable with Illumination

The UCS-E-1500 with illumination includes the following features:

  • Workstations with a large surface area
  • Entire construction is made of stainless steel (Material no. 1.4301 - ANSI 304)
  • Stable, self-supporting undercarriage with adjustable legs
  • Low overall height of the upper structure increases leg room
  • Height-adjustable from 750 to 1000 mm
  • Height-adjustable with UP/Down push button
  • Work surface includes a seamlessly welded basin measuring 400 x 400 x 200 mm
  • Basin includes integrated air vacuum
  • Very sturdy, perforated and insertable working plates
  • Integrated sprinkler system with adjustable valve for bath sanitation located underneath the perforated working plates
  • Formalin sink with sieve insert
  • Mixing tap with detachable cold and hot water shower
  • Exhaust duct
  • Build in Illumination with "Daylight" Quality approx. 5000°K for direct photograph without additional Flashlights
  • 2x 230 Volt Electric socket outlet


德国进口病理学产品

染色台

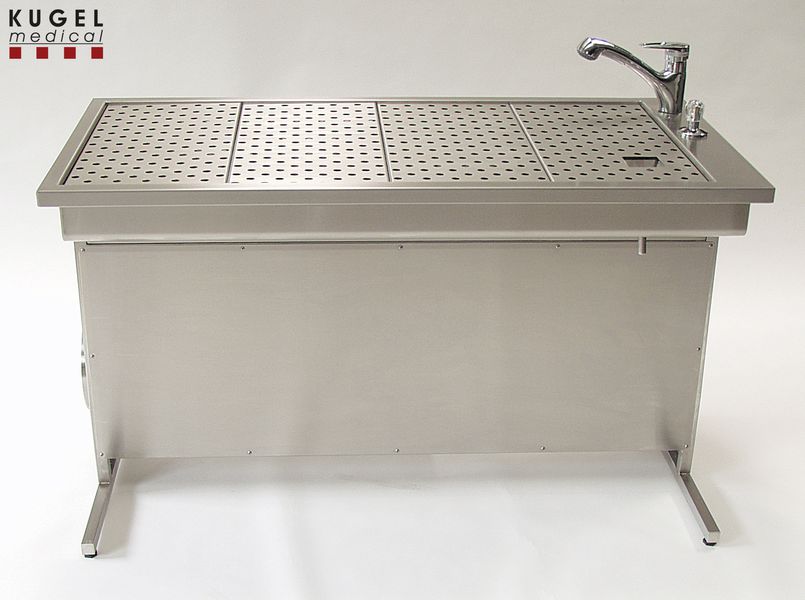

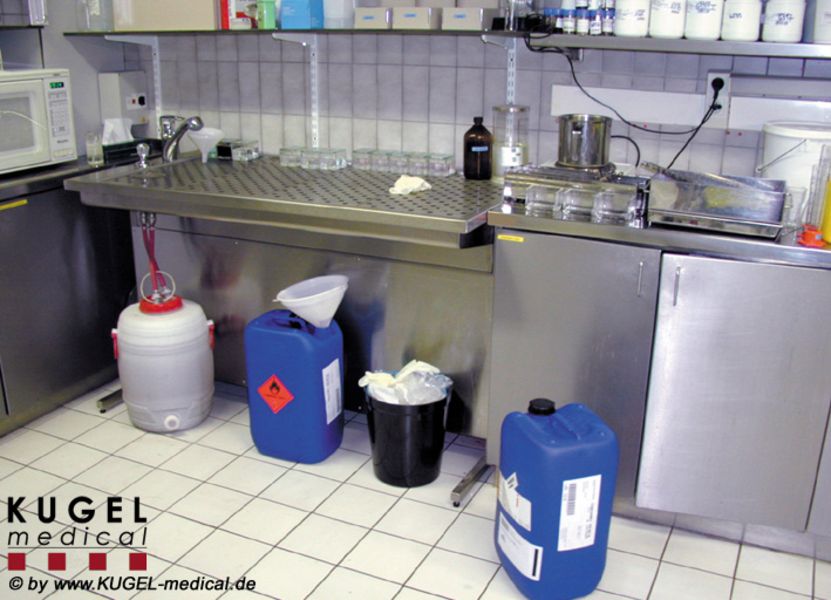

Staining Table FT-1000

染色工作台

Staining Table FT-1000
染色工作台

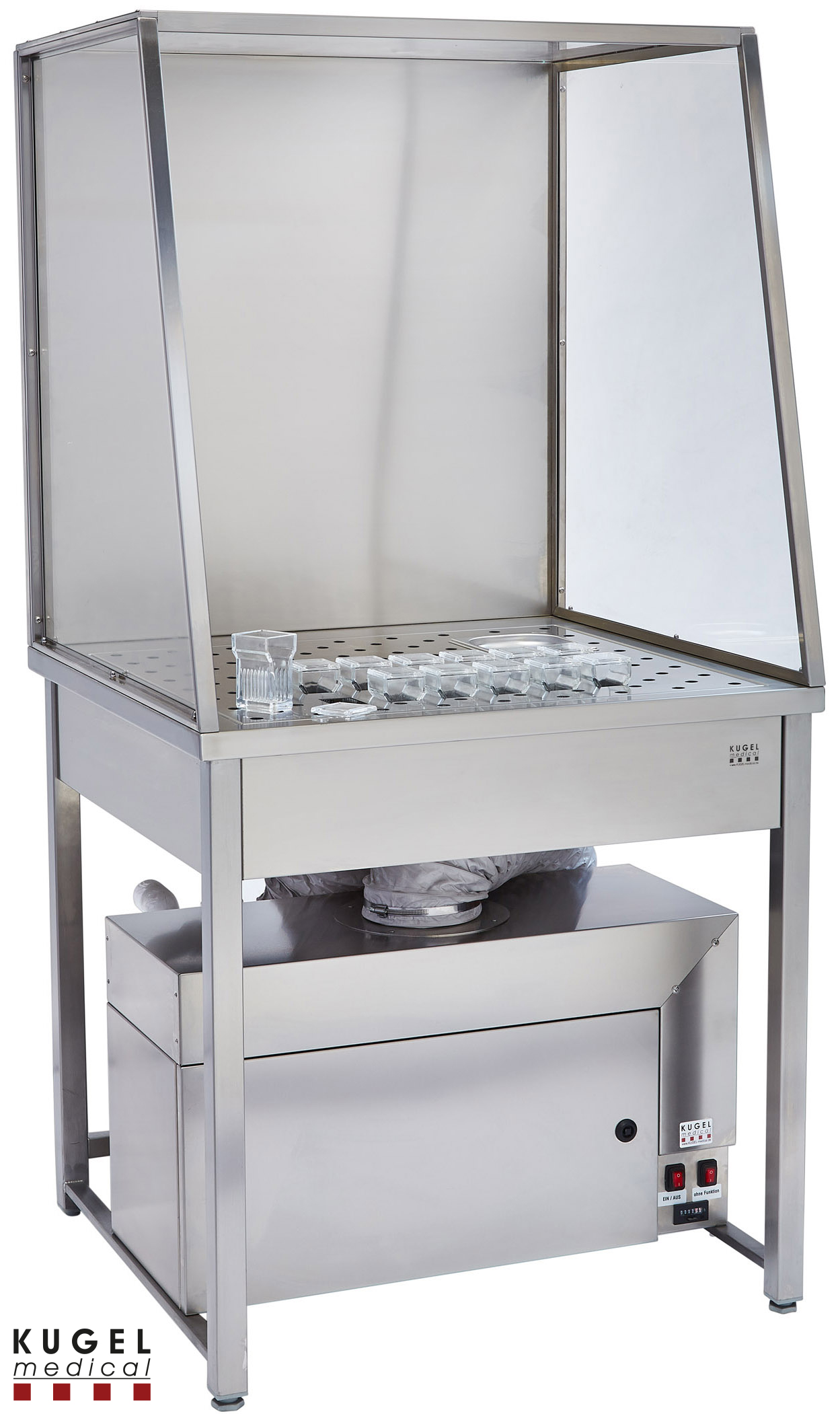

Staining Table FT 850-AK-ULS with Carbon Filter and Exhaust Fan - ECO-LINE

染色工作台

Staining Table FT 850-AK-ULS with Carbon Filter and Exhaust Fan - ECO-LINE
切片工作台

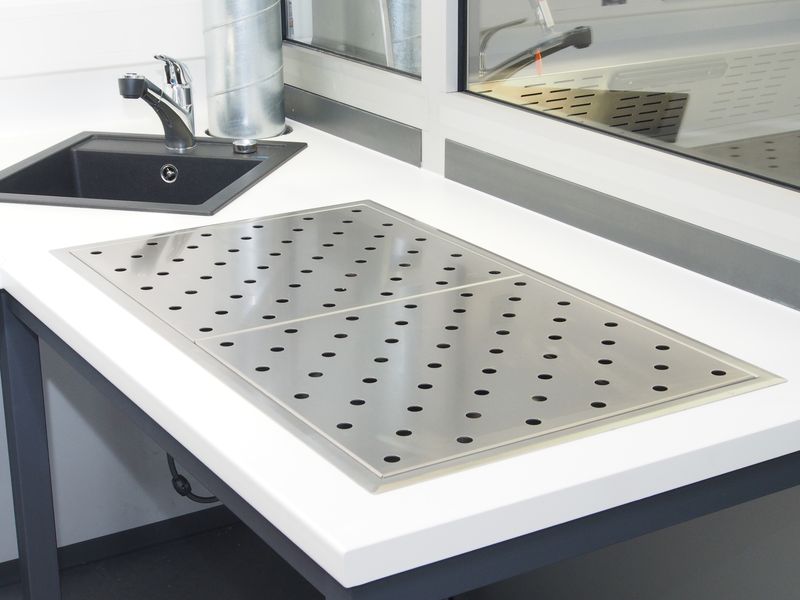

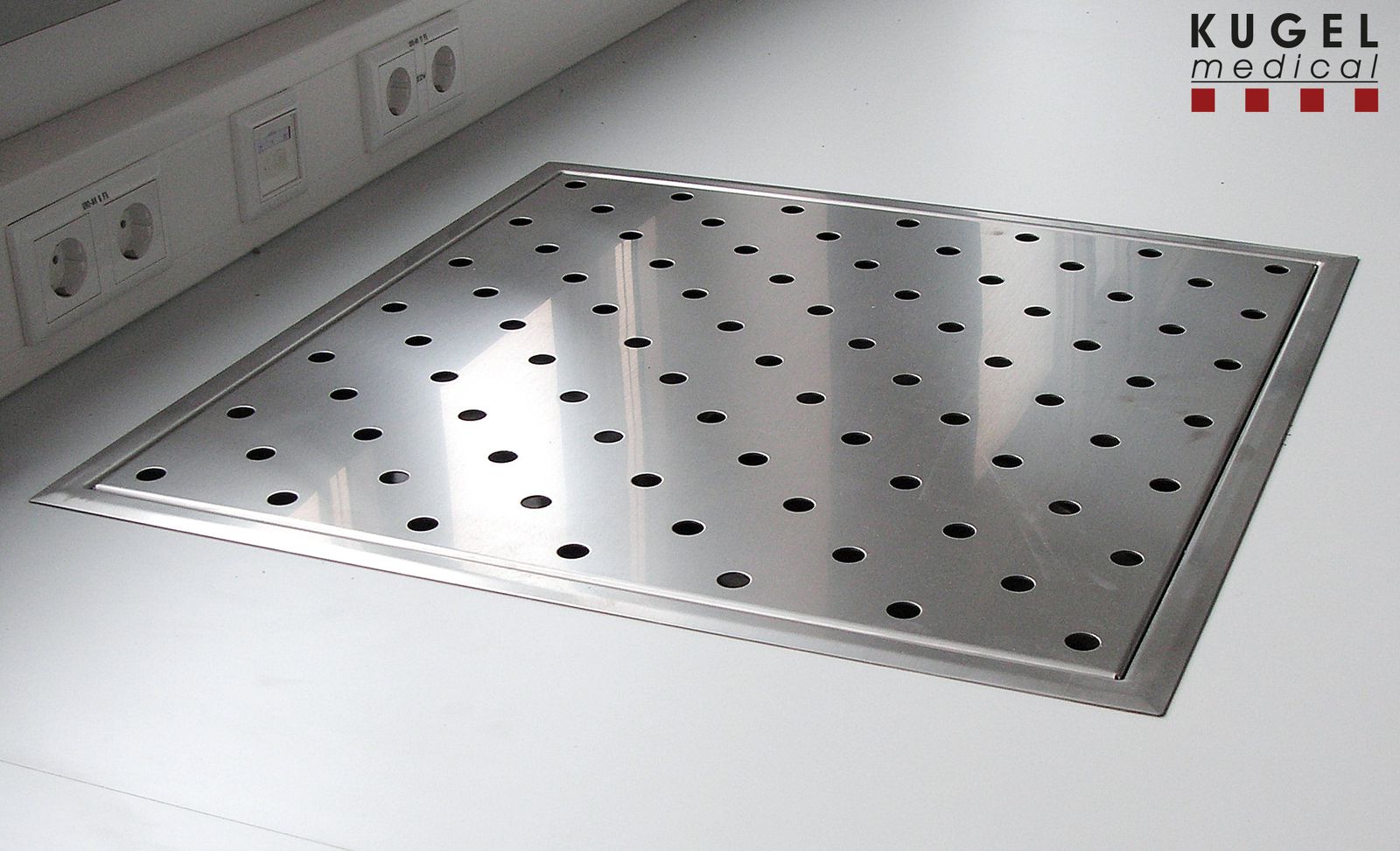

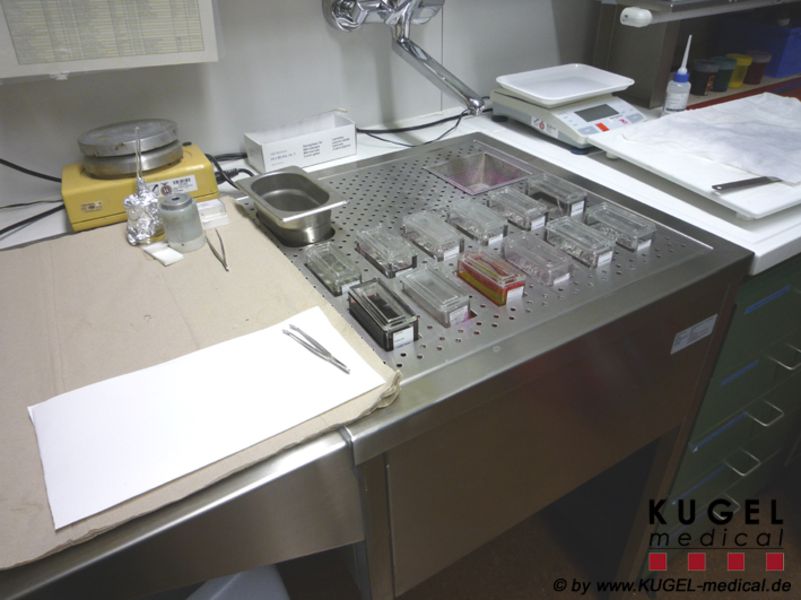

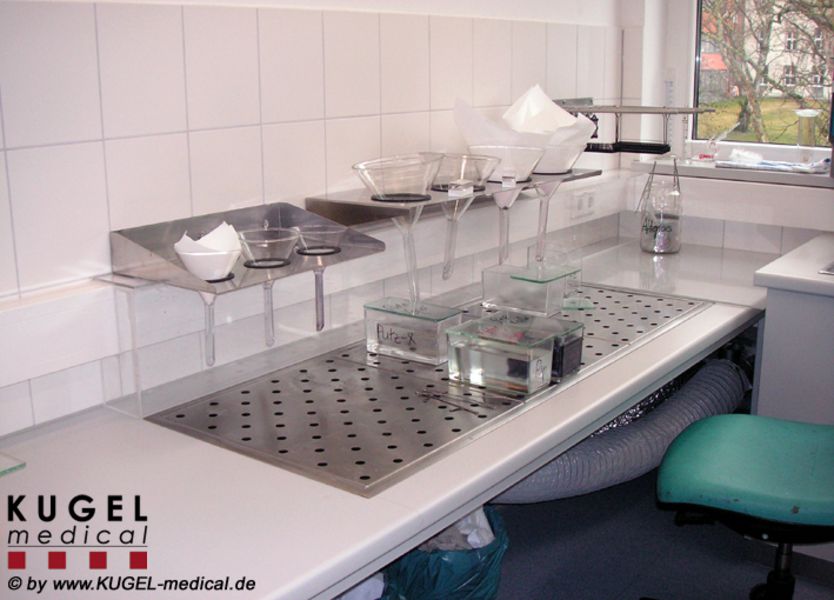

Integrated Working Surface with Exhaustion EBA-600

切片工作台

Integrated Working Surface with Exhaustion EBA-600
